PVC pipes are among the most used construction materials for distributing liquids, electricity, and gases. They come in different sizes and colors that label their application.

Here’s a 3-step guide to choosing the correct ones for your project:



Step 1: Always Choose Trusted Brands

High quality is better. At Mackun Hardware, we carry brands like Emerald, Moldex, Neltex, Sanitech, and Regina, which are known for their durability.

Low-quality brands need frequent replacements and end up costing you more in maintenance fees.



Step 2: Pick the Correct PVC Pipe Size

Remember to pick the correct size as specified by your project manager. The wrong size may not be usable in your project. While a reducer can sometimes fix this problem, it does not guarantee a fit.

Here are the most common diameter sizes:

• 1/2 inch (12.7 mm),

• 3/4 inch (19 mm)

• 1 inch (25 mm)

• 1 1/4 inch (32 mm)

• 1 1/2 inch (38 mm)

• 2 inches (50 mm)

• 3 inches (75 mm)
• 4 inches (100 mm)

Distributors may require an advance order for larger sizes, such as 6".

Step 3: Get the Right Pipe Color

PVC pipe colors are important to label their application, helping workers avoid mistakes during installation and maintenance. In the Philippines, the most common colors and their purposes include:

1. Orange – Drainage and sewer pipes, especially for wastewater or storm drainage systems.

2. Blue – Pressurized water pipes, often for main water supply lines that distribute clean water to our faucets and showers.

3. Gray – Electrical conduit pipes, protecting power cables. They are sometimes used for lower voltage wires like routing cables.

The following are less common:

4. Green – Sewer or wastewater pipes for lower-pressure systems.

5. White – Drinking water pipes for residential and commercial buildings.

6. Others – Colors not listed here may indicate the transfer of gas, chemicals, or other substances. For more information, refer to the product's website or consult the regulatory authority in your region.

Color Coding Standards can vary based on your region. Consult your project manager or the regulatory authority to ensure you pick correctly.

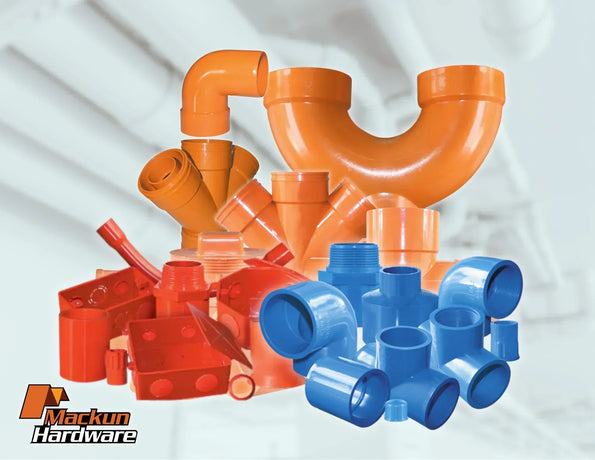

Do the Same for PVC Fittings

Fittings connect pipes in different ways. Ensure they are the same brand, size, and color as the pipes. Common types include:

• Elbows – Change direction (90° or 45°).

• Tees – Connect three pipes in a T-shape.

• Couplings – Join two pipes of the same size.

• Reducers – Connect pipes of different sizes.

• Caps – Seal the end of a pipe.

• Adapters – Connect PVC to other pipe types.

• Unions (also called Quick Connectors) – Allow easy disconnection for maintenance

The quantity you’ll need for each fitting depends on the project.



Final Thoughts

Choosing the right PVC pipes is important to ensure durability, a proper fit for the project, and to correctly label its application.

We hope this guide was helpful! If you need more assistance, our team at Mackun Hardware is always ready to help.
